Vibratory Bowl Feeder
GEEKVALUE-SEMI provides custom vibratory bowl feeder systems that separate, orient and deliver packaged ICs, SMD and LED components, and other small precision parts to test handlers, vision inspection, assembly and packaging equipment. Each system is configured around the actual component, required discharge orientation, target feed rate and downstream machine interface, with bowl tooling, linear tracks, sensors and escapements matched and verified as one complete feeding solution.
Start With the Part and Required Outlet Position
Geometry, orientation, output and machine handoff determine the system.
Bulk Part SeparationReduce overlap and uncontrolled movement
Repeatable OrientationRetain correct positions and reject others
Controlled OutputCoordinate feeding with downstream demand
Machine HandoffMatch track, height, sensors and signals
Direct Equipment Answer
What Is a Vibratory Bowl Feeder?
A vibratory bowl feeder is an automated parts-feeding system that uses controlled vibration and application-specific track tooling to separate, orient and present components one by one. Incorrect positions are returned to the bowl or rejected, while accepted parts continue through a linear track, buffer or escapement toward the next production process.
Why the Bowl Is Only One Part of the System
The bowl generates part movement, but reliable production also depends on orientation tooling, the drive, controller, accumulation control and the transfer into the next machine.
Two feeders with the same bowl diameter may perform very differently when their parts, required orientations, feed rates or downstream interfaces are different.
SeparateConvert a random bulk load into controlled part movement.
OrientUse physical features or sensors to distinguish correct positions.
AccumulateMaintain a suitable queue without excessive part pressure.
ReleaseDeliver one part or a controlled group at the required cycle.
Complete Feeding Architecture

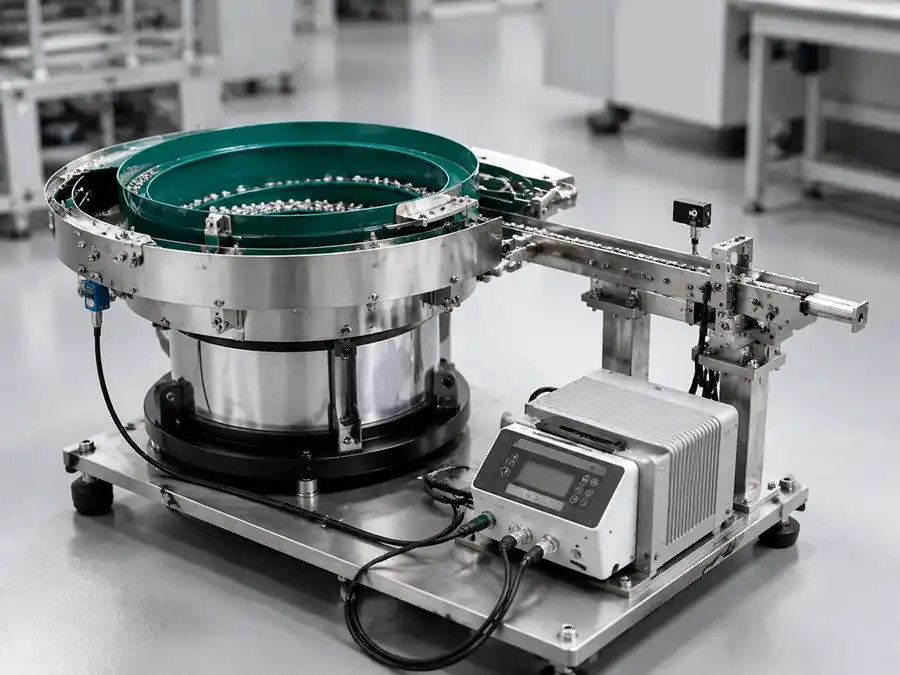

Core Components of a Vibratory Bowl Feeder System
The required scope depends on how parts arrive, how they must leave and how the downstream equipment requests material.
02
Drive Unit
Generates controlled vibration matched to the bowl mass, component behavior and required movement.
03

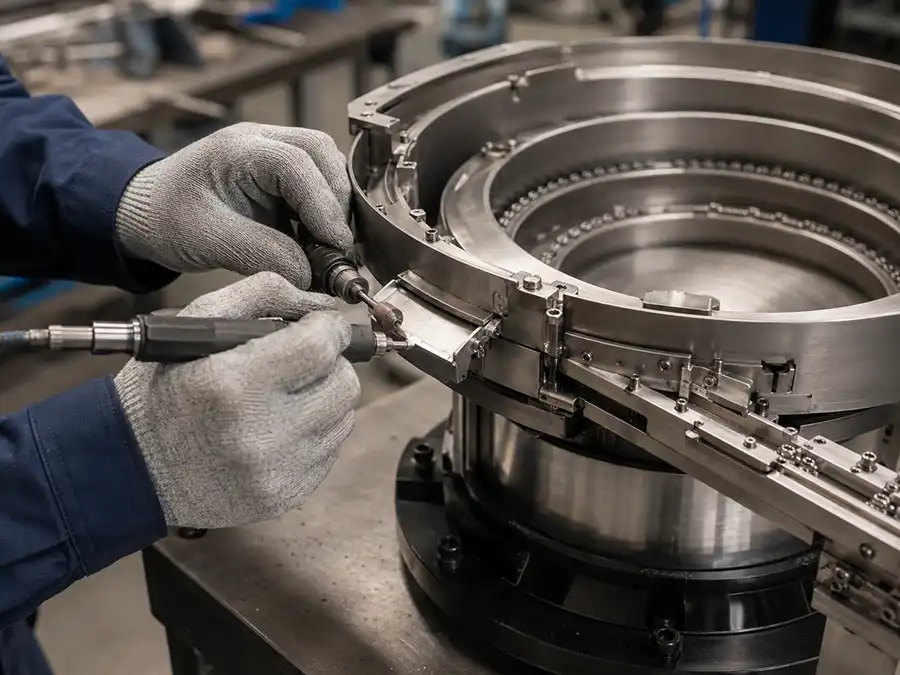

Orientation Tooling
Uses rails, wipers, selectors, restrictions or air jets to retain acceptable positions.
04
Frequency Controller
Adjusts vibration frequency and amplitude to stabilize movement for the approved component.
05

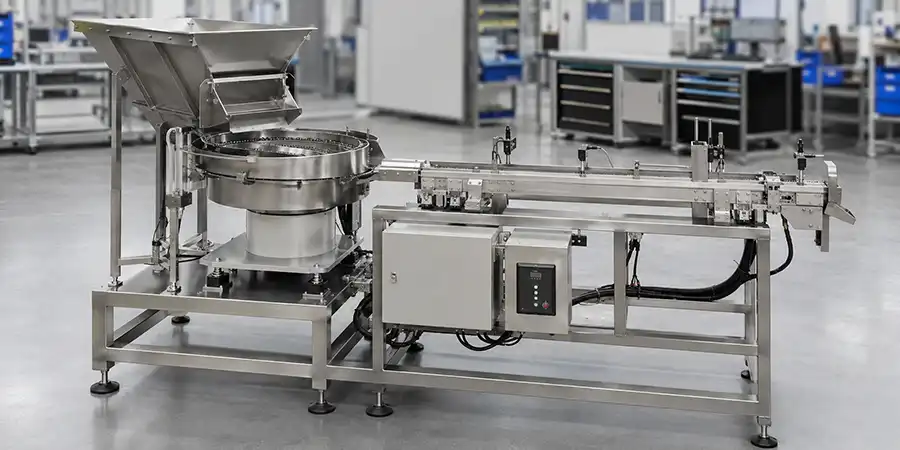

Linear Track and Buffer
Transfers oriented parts and maintains the queue needed by the machine input.
06
Sensors and Escapement
Monitor accumulation and support controlled single-part separation or machine-ready release.
From Random Bulk Parts to Machine-Ready Output
How a Vibratory Bowl Feeder Is Engineered Around the Application
A stable design connects physical part behavior to the required production handoff.
Analyze the Part
Review geometry, weight, center of gravity, surface, fragility and possible stable positions.
Define Orientation
Mark the exact outlet position and identify features that can confirm or reject it.
Design the Transfer
Match track direction, height, buffer, separation method and downstream inlet.
Verify With Samples
Observe output, wrong positions, jams, doubles and part condition against agreed criteria.
Semiconductor and Precision Automation
Where Vibratory Bowl Feeders Are Used
Feeder configuration depends on the component, required orientation, production rate and downstream process.
Test Handler Infeed
Present compatible packaged devices to a handler track, pickup point or indexing mechanism with controlled accumulation.
IC and Component Sorting
Supply oriented components for identification, inspection, electrical testing, grading or binning.
Vision Inspection
Maintain a known component face, direction and spacing before camera-based inspection or measurement.
Taping and Packing
Feed accepted parts toward counting, pocket loading, tube loading or other packaging operations.
SMD and LED Handling
Orient suitable electronic components while considering small feature differences and appearance-sensitive surfaces.
Automated Parts Assembly
Deliver mechanical or electronic parts in a repeatable pose for insertion, fastening, robotic pickup or assembly.
Why Drawings Alone Are Not Always Enough
Use Physical Samples to Confirm Real Feeding Behavior
Drawings establish dimensions and tolerances, but they do not fully show friction, center of gravity, nesting, tangling, surface sensitivity or how several parts interact under vibration.
Representative samples are especially important for small electronic parts, components with several stable positions and parts whose appearance or leads can be damaged by uncontrolled contact.
For application review, provide representative samples and a clearly marked
outlet-orientation drawing. A feeding test can then confirm movement, rejection
and transfer behavior before the final configuration is approved.
Selection Before Price
Vibratory Bowl Feeder Selection Requirements
An accurate quotation requires the component specification, output orientation, target rate and machine interface. These details determine the tooling concept, control scope and integration requirements.
| Requirement | Engineering Question | Project Information |
|---|---|---|
| Part geometry | Which physical features can establish orientation? | Dimensioned drawing, 3D model, photographs and tolerances. |
| Material and surface | Can the part slide and contact other parts without damage? | Material, finish, fragile areas, cleanliness and allowable contact. |
| Required orientation | Which face and direction must reach the machine? | Marked outlet-orientation drawing or photograph. |
| Target output | What continuous rate and buffer are actually required? | Parts per minute, UPH, machine cycle and demand pattern. |
| Machine interface | How will the part leave the feeder and enter the process? | Inlet height, direction, track profile, installation space and drawing. |
| Controls | How does the feeder respond to demand and accumulation? | Voltage, sensors, start-stop logic and PLC or machine signals. |
| Environment | Are ESD, particles, noise or material restrictions relevant? | Production-area requirements and any measurable acceptance limits. |
| Sample test | How will the proposed system be verified? | Representative parts, test quantity, duration and acceptance criteria. |
Use the Right Presentation Method
Vibratory Bowl Feeder vs Flex Feeder, Tray and Tape
A bowl feeder is valuable when its mechanical orientation advantages match the production mix and component risk.
Vibratory Bowl Feeder
Often suitable for high-volume feeding of a consistent part with mechanically detectable orientation. Custom tooling is normally component-specific.
Flex Feeder and Vision
Can suit mixed production or parts whose correct pose is more practical to identify visually, although robot, camera and cycle requirements must be evaluated.
Tray, Tube or Tape
May be preferable for bare dies, fragile surfaces, contamination-sensitive devices or components already supplied in a controlled orientation.
Custom Project Support
Need a Partner for a Custom Bowl Feeder Project?
Reliable feeding depends on more than the bowl itself. The project partner should define the orientation method, complete supply scope, sample-testing conditions and mechanical handoff to the downstream machine. Review our manufacturing workflow, project responsibilities, factory acceptance approach and quotation requirements on the dedicated manufacturer page.
Engineering RFQ
Information Needed for a Vibratory Bowl Feeder Quote
Price depends on the part, orientation complexity, tooling, required rate, included modules and integration boundary. A detailed RFQ produces a more meaningful technical and commercial comparison.
Use representative partsSamples reveal real friction, stable positions, nesting and surface behavior.
Mark the outlet orientationA drawing or photograph is clearer than a written direction alone.
Define the machine handoffInclude inlet geometry, height, direction, cycle and signal requirements.
Related Equipment Paths
Continue by Equipment or Process Requirement
Frequently Asked Questions
Vibratory Bowl Feeder FAQ
What does a vibratory bowl feeder do?
It separates randomly loaded parts, establishes a repeatable orientation and delivers them in a controlled sequence to downstream testing, sorting, inspection, packaging or assembly equipment.
How does a vibratory bowl feeder work?
A controlled drive moves parts along a spiral track. Application-specific tooling retains correct positions and returns or rejects incorrect ones before accepted parts enter a track, buffer or escapement.
Can a bowl feeder be customized for IC and SMD components?
Compatible packaged ICs, LEDs, SMD parts and other electronic components can be evaluated. Suitability depends on geometry, surface sensitivity, required orientation, output and downstream interface.
Are vibratory bowl feeders suitable for bare dies?
Not automatically. Bare dies and fragile surfaces may be vulnerable to contact, particles, impact or electrostatic risk. Tray, tape, tube or another protected presentation method may be more appropriate after engineering review.
What determines vibratory bowl feeder price?
Price depends on part behavior, bowl and drive size, orientation tooling, coating, required output, controller, hopper, linear track, sensors, escapement and machine-integration scope.
How should I evaluate a custom bowl feeder project partner?
Confirm that the proposed orientation method, supplied modules, representative-sample testing, machine interface and acceptance conditions are clearly defined. For a complete evaluation framework, review our vibratory bowl feeder manufacturer capabilities .
What samples are needed before a custom feeder is built?
Use production-representative parts from the expected dimensional and surface range. The manufacturer should confirm the required quantity and whether different batches or known variants must be included.
Can a vibratory bowl feeder connect to an existing test handler?
It may be possible after confirming the handler inlet, required package orientation, track height, available space, buffer, sensors, voltage and control signals.
Start With the Component, Orientation and Machine Interface
Send drawings, part photographs, representative samples, required output position, target feed rate and downstream equipment information for an application review.
