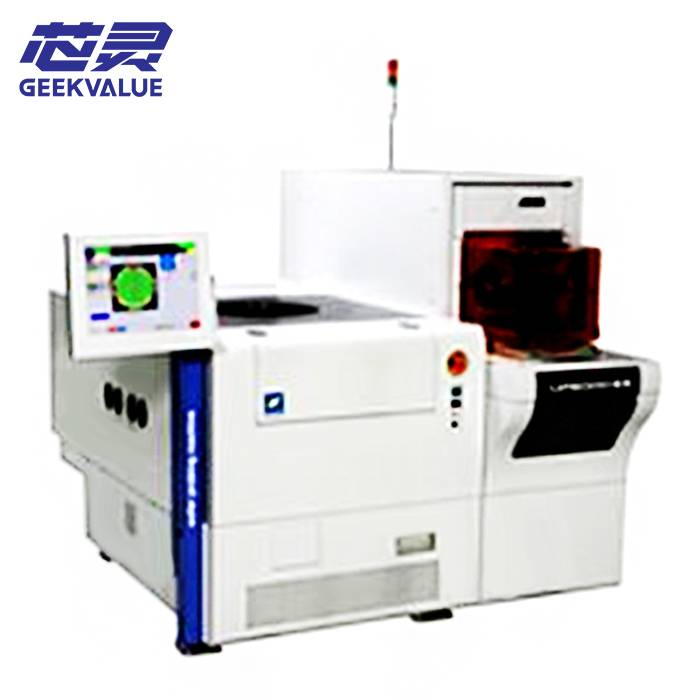

Used ACCRETECH / TSK UF3000EX Wafer Prober for Sale
Used ACCRETECH / TSK UF3000EX automatic wafer prober for 300 mm wafer testing. GK-SEMI helps match available equipment t...
Wafer-Level Test Equipment
Used Probe Station Systems
We stock used probe stations from ACCRETECH, TSK, Cascade Microtech, MPI, FormFactor and other platforms. The station that fits your line depends on four things: wafer format, measurement type, probe interface and automation level. Most used-probe-station purchases that go wrong fail at one of these four points — not at the base specification. Tell us your requirements and we'll shortlist the units that actually work with your instruments.
Available Equipment
Available Used Probe Stations
Two probe stations with the same model name can have very different capabilities. The installed chuck, probe interface, stage accuracy, temperature options and software matter more than the platform name alone. Review the current inventory, then send us your measurement requirements for a configuration check.
Looking for a specific ACCRETECH, TSK, Cascade Microtech, MPI, FormFactor or another wafer prober? Send the model number even when it is not currently shown — our sourcing team will check availability.
ACCRETECH UF200R 200 mm Automatic Wafer Prober
200 mm automatic wafer prober. Handles 5–8" wafers, MMI interface from the UF2000. XY stage up to 300 mm/s. Options...

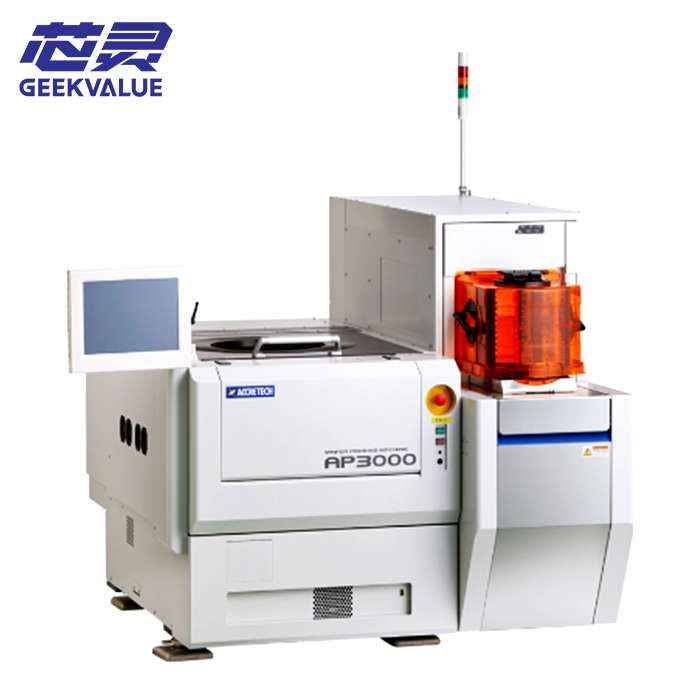

ACCRETECH AP3000 Wafer Prober
Used Accretech AP3000 prober. 300mm, fully automatic, dual-arm load port, FOUP/EFEM compatible. XY repeatability within ...

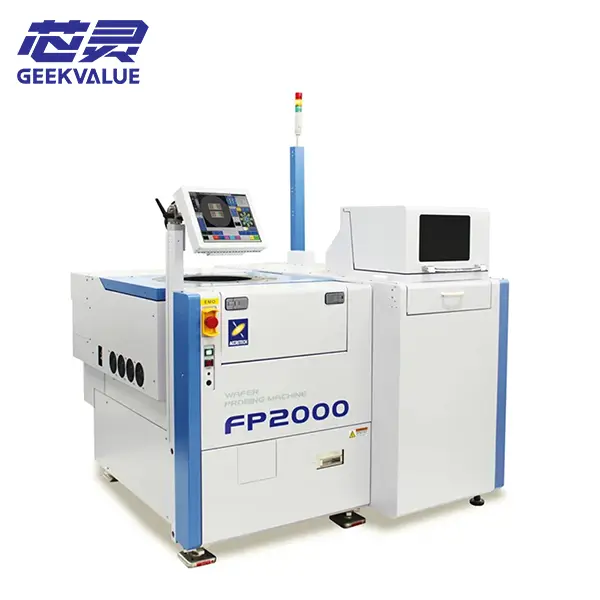

ACCRETECH FP2000 Frame Handling Wafer Prober
ACCRETECH FP2000 frame handling prober. Built on the UF2000 platform, handles 5–8" wafers and post-dicing die on fr...
Build the Complete Test Path
A Probe Station Does Not Work Alone
We've seen buyers purchase a probe station based on stage accuracy alone, then discover their instruments can't connect because the probe interface doesn't match — the datasheet never mentioned it. The complete result depends on probes or a probe card, cables, switching, test instruments, calibration and software. Tell us what you are measuring and which instruments you already have, and we can narrow the configuration without making you specify every component first.
Wafer, Die or Substrate
Confirm diameter, thickness, pad layout, backside condition and whether the DUT is a full wafer, partial wafer or individual die.
Chuck & Environment
Vacuum, thermal, high-power, low-noise, light-tight, pressure or cryogenic requirements change the station configuration.
Probe Contact
Choose individual probe positioners or a probe card according to pad count, pitch, frequency, current and repeatability.
Measurement Instruments
SMUs, parameter analyzers, oscilloscopes, VNAs, power analyzers or ATE resources perform the electrical test.
Control & Data
Alignment, stepping, wafer mapping, test sequence, calibration and result handling determine workflow efficiency.
Sales shortcut: tell us what you are measuring and which instruments you already have. We can then narrow the probe station, interface and automation requirements without making you specify every component first.
Choose by Measurement
The Test Objective Determines the Probe Station Configuration
“Probe station” is a broad equipment category. A system for DC parametric characterization is not automatically suitable for RF, high-power, photonics or cryogenic testing.
01DC / IV-CV
Device characterization, process monitoring and low-current measurements may require guarded or triax connections, a suitable chuck and EMI/light shielding.
02RF / mmWave
High-frequency probing depends on RF positioners, compatible probes, calibration substrates, stable cabling and controlled probe-to-pad alignment.
03High Power
Power semiconductor test changes current, voltage, isolation, thermal control, arcing protection and operator-safety requirements.
04RF / Optical / SiPh
Silicon photonics and optoelectronic test may combine electrical probes with fiber alignment, optical instruments and synchronized motion.
05FA & R&D
Failure analysis and engineering labs usually value flexible access, microscopes, manipulators and quick changes between wafer, die and package formats.
06Vacuum / Cryogenic
Low-temperature, vacuum or magnetic-field measurements require a dedicated chamber, feedthroughs, thermal design and compatible probe positioning.
Automation Level
Manual, Semi-Automatic or Automatic Probe Station?
The best level of automation depends on test volume, wafer size, alignment difficulty, recipe repeatability and how much operator involvement the process can accept.
| Decision Point | Manual Probe Station | Semi-Automatic Probe Station | Automatic Wafer Prober |
|---|---|---|---|
| Typical Use | R&D, failure analysis, education and low-volume characterization. | Engineering, parametric test and repeatable medium-volume wafer measurements. | Production wafer test, mapped stepping, automated alignment and higher-throughput screening. |
| Operator Role | Operator positions the wafer, probes and measurement points directly. | Motorized stage and software automate selected movements while the operator manages setup. | Loader, alignment, wafer map and test sequence can run with limited intervention. |
| Flexibility | Highest for changing experiments. Easy access to probe arms and DUT. | Balances flexibility with repeatable motion and recipe control. | Best when product format, probe card and test flow are well defined. |
| Throughput | Lowest; strongly influenced by operator skill and setup time. | Improved stepping and alignment without the full cost of production automation. | Highest potential, but actual throughput also depends on tester time, contact quality and wafer handling. |
| Best Buying Question | Can the platform support my measurement instruments and probe geometry? | Which movements, alignment and mapping functions are automated? | What loader, wafer size, probe-card interface, temperature range and factory interface are included? |
Current inventory may focus on production probers. We can still review requirements for manual, semi-automatic, RF, power or specialty probe stations through the sourcing network.
Ask Which Type Fits
Probe Station Price
Why Probe Station Prices Vary So Widely
Search results often mix small manual laboratory platforms with 200 mm or 300 mm automated wafer probers. Those systems belong to very different price classes, so a useful quotation must start with the intended measurement and the actual configuration.
For used equipment, the year alone does not explain value. Loader condition, stage accuracy, chuck and temperature options, probe-card interface, software, controllers, accessories and serviceability can have a greater effect on the final purchase.
Request Current Price
Test Equipment Boundaries
Probe Station, ATE and Test Handler Are Different Parts of the Test Flow
Buyers often use these terms together, but each equipment category has a different job. Clarifying the boundary prevents a quote for a mechanical prober when the real need is a tester, probe card or packaged-device handler.
Probe Station / Wafer Prober
Positions the wafer or die and makes repeatable physical contact through probes or a probe card.
View ModelsATE / Testing System
Generates test stimulus, measures device response and executes the electrical test program.
Testing SystemsProbe Card & Probes
Create the electrical interface between the device pads and the measurement path; pitch, frequency and current must match the application.
Equipment RangeTest Handler
Feeds, temperature-conditions and sorts packaged devices after wafer-level probing and packaging.
Read Test Guides
Configuration Review
We Help Turn a Test Requirement Into an Equipment Shortlist
You do not need to prepare a complete specification before contacting us. Start with the device, measurement and wafer format. We will identify the missing configuration points and check available equipment against the real test setup.
Start a Probe Station InquiryDevice & Wafer
Product type, wafer size, pad layout, thickness and loading format.
Test Objective
Characterization, failure analysis, production screening, RF, power or another measurement.
Station & Contact
Automation level, chuck, stage, probe card or positioners, microscope and enclosure.
Actual Supply Scope
Model, serial number, software, controllers, loader, accessories, condition and delivery support.
Buyer Questions
Probe Station FAQ
These answers cover the questions that most often affect equipment selection, integration and quotation.
What is the difference between a probe station and a wafer prober?
The terms overlap. “Probe station” is often used for analytical or engineering platforms, while “wafer prober” commonly describes semi-automatic or automatic systems that step across full wafers and may include loaders, wafer mapping and production interfaces. The exact model architecture matters more than the name.
Does a probe station include the tester or measurement instruments?
Not always. A probe station normally provides positioning, contact and the test environment. SMUs, parameter analyzers, VNAs, oscilloscopes or ATE resources may be separate and must be integrated through compatible probes, cables, switching and software.
How do I choose between manual and automatic probing?
Manual systems are flexible for R&D and changing experiments. Semi-automatic systems add repeatable motorized motion and mapping. Automatic wafer probers are better suited to defined production flows, cassette handling and higher test volume.
What determines probe station price?
Wafer size, automation, loader, chuck, temperature range, stage accuracy, probe interface, microscope, enclosure, software, controllers, included accessories and equipment condition all affect price. A small manual laboratory platform should not be compared directly with a production automatic prober.
Can one probe station support DC, RF and high-power testing?
Some modular platforms can be reconfigured, but the chuck, probes, cables, positioners, shielding, calibration and safety design differ. Support should be confirmed for the actual configuration rather than inferred from the base model name.
What should be checked when buying a used probe station?
Confirm the complete model and serial number, wafer size, loader, stage and alignment performance, chuck type, temperature options, probe-card interface, controllers, software and licenses, included accessories, operating condition and service history.
Request a Used Probe Station Quote
Send the probe station model—or describe the measurement you need. We'll confirm availability, configuration completeness and measurement compatibility within 4 business hours.
